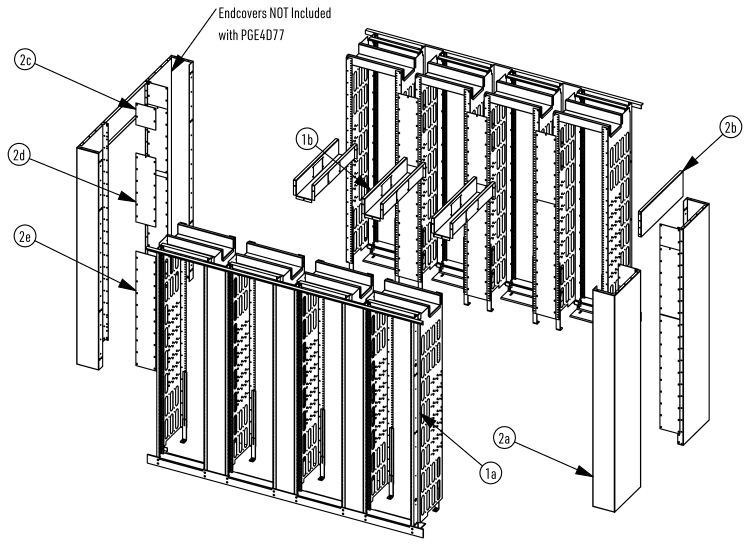

HCU4D77 Exploded View

Back To Listing HCU4D77

Duplex Four 19" Rack Units 7'6" Tall

Talk With an Engineer
  • Part List
    1 HCU4D77 4-Rack Unit Duplex -
    1a HCU4S77 19” x 7’-6” Rack Assembly 4 Rack Units 2
    1b HCU9550 Duplex Wire Channel with Covers 3
    - HCU4D77_Hardware Hardware Kit for HCU4D77 (See Hardware Detail) 1
    2 HCUDECA7_set Duplex End Cover Assembly -
    2a HCUDW90 90” Aluminum End Cover 4
    2b HCU9590G Duplex Endcover Bridge 2
    2c HCUWC90M Wireway Cover Middle (7-1/2” Spacer) 4
    2d HCUWC90T Wireway Cover Top (7-1/2” Spacer) 4
    2e HCUWC90B Wireway Cover Bottom (7-1/2” Spacer) 4
    - HCUDECA7_Hardware Hardware Kit for HCUDECA7 2
  • Diagrams

    Assembled View

    Assembled View

    Assembled View

    Assembled View

    Assembled View with HCUDECA7 End Covers

    Assembled View with HCUDECA7 End Covers

    Assembled View with HCUDECA7 End Covers

    Assembled View with HCUDECA7 End Covers

    Top Plan View

    Top Plan View

    Top Plan View

    Top Plan View
