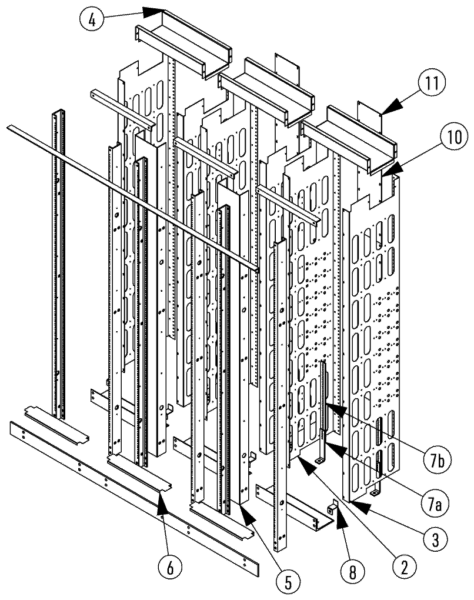

HCU3SS77 Exploded View

Back To Listing HCU3S77

Simplex Three 19" Rack Units 7'6" Tall

Talk With an Engineer
  • Part List
    1a HCUR90 Rack Rail 7'6" High 6
    1b HCU3RFKP Kick Plate 3 Rack Units for 7-1/2" Spacers 1
    1c HCUBA635 Base Angle 3
    1d HCU3RA15 Top Angle 3 Rack Units for 7-1/2" Spacers 1
    1e HCUTA15 Top Angle 3
    2 HCU7590L Wireway Left, 7'-6" High 3
    3 HCU7590R Wireway Right, 7'-6" High 3
    4 HCUWC4 Single Wall Wire Channel 3
    5 HCU7590A 7-1/2" x 3" x 90" Rack Spacer 2
    6 HCU19DC Dust Cover for Relay Rack 3
    7a HCUWSAL Support Bracket L Angle 6
    7b HCUWSAX Support Bracket Extender 6
    8 HCUZSB Bussbar Brace 6
    - HCUWC90B Wireway Cover Bottom (7-1/2" Spacer) 2
    10 HCUWC90M Wireway Cover Middle (7-1/2" Spacer) 2
    11 HCUWC90T Wireway Cover Top (7-1/2" Spacer) 2
    - Hardware Kit HCU3S77 Hardware Kit (See Hardware Detail) -
  • Diagrams

    Assembled View

    Assembled View

    Assembled View

    Assembled View

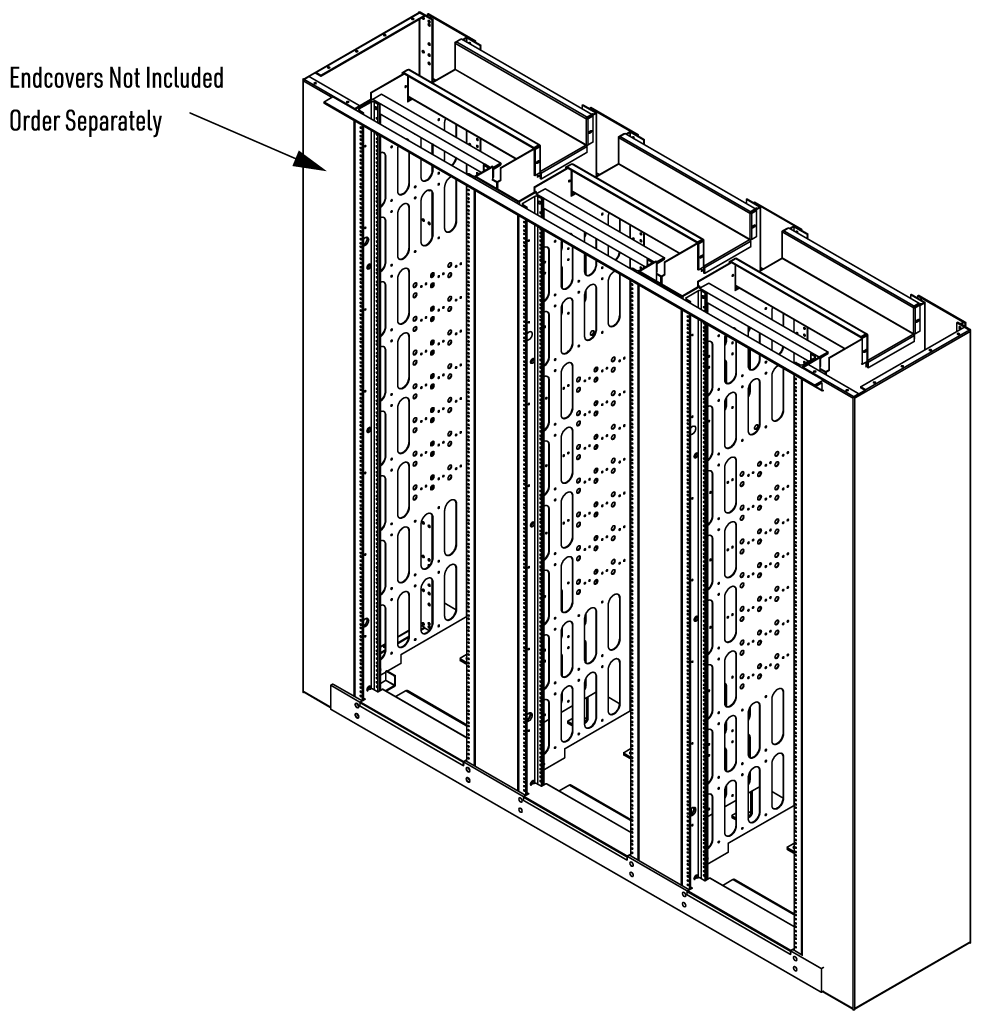

    Assembled View with HCUSECA7 Endcover Assemblies

    Assembled View with HCUSECA7 Endcover Assemblies

    Assembled View with HCUSECA7 Endcover Assemblies

    Assembled View with HCUSECA7 Endcover Assemblies

    Top Plan View

    Top Plan View

    Top Plan View

    Top Plan View

    HCURU903 Top Plan View

    HCURU903 Top Plan View

    HCURU903 Top Plan View

    HCURU903 Top Plan View
