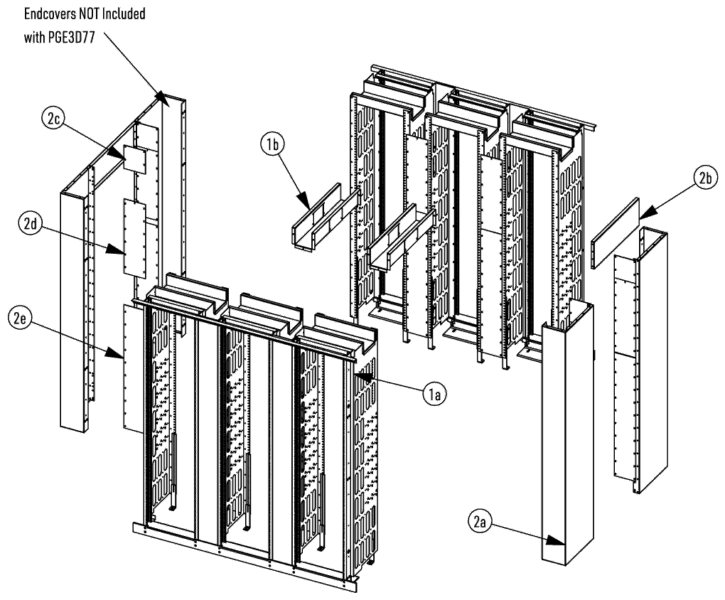

HCU3D77 Exploded View

Back To Listing HCU3D77

Duplex Three 19" Rack Units 7'6" Tall

Talk With an Engineer
  • Part List
    1 HCU3D77 3-Rack Unit Duplex -
    1a PGE3S77 19” x 7’-6” Rack Assembly 3 Rack Units (7-1/2” Spacers) 2
    1b HCU9550 Duplex Wire Channel with Covers 2
    - HCU3D77_Hardware Hardware Kit for PGE3D77 (See Hardware Detail) 1
    2 HCUDECA7 Duplex End Cover Assembly -
    2a HCUDW90 90" Aluminum End Cover 4
    2b HCU9590G Duplex Endcover Bridge 2
    2c HCUWC90T Wireway Cover Top (7-1/2” Spacer) 4
    2d HCUWC90M Wireway Cover Middle (7-1/2” Spacer) 4
    2e HCUWC90B Wireway Cover Bottom (7-1/2” Spacer) 4
    - HCUDECA7_Hardware Hardware Kit for HCUDECA7 2
