HCU2S77 Table Diagram

Back To Listing HCU2S77

Simplex Two 19” Rack Units 7’6” Tall

Talk With an Engineer

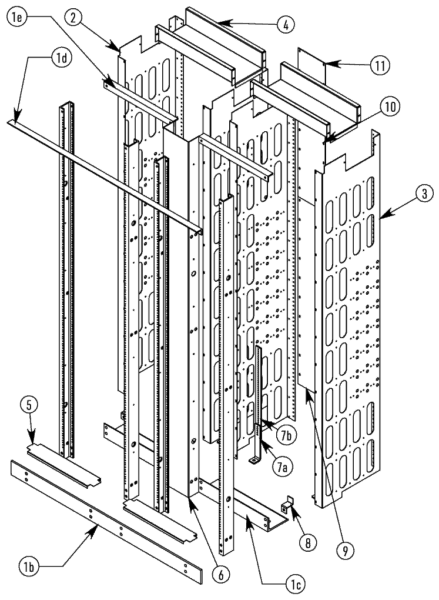

  • Part List
    HCUR90 Rack Rail 7’6” High 4
    1b HCU2RFKP Kick Plate 2 Rack Units for 7-1/2”Spacer 1
    1c HCUBA635 Base Angle 2
    1d HCU2RA15 Top Angle 2 Rack Units for 7-1/2”Spacer 1
    1e HCUTA15 Top Angle 2
    2 HCU7590L Wireway Left, 7’-6”High 2
    3 HCU7590R Wireway Right, 7’-6”High 2
    4 HCUWC4 Single Wall Wire Channel 2
    5 HCU19DC Dust Cover for Relay Rack 2
    6 HCU7590A 7-1/2” x 3” x 90” Rack Spacer 1
    7a HCUWSAL Support Bracket L Angle 4
    7c HCUWSAX Support Bracket Extender 4
    8 HCUZSB Bussbar Brace 4
    9 HCUWC90B Wireway Cover Bottom (7-1/2” Spacer) 1
    10 HCUWC90M Wireway Cover Middle (7-1/2”Spacer) 1
    11 HCUWC90T Wireway Cover Top (7-1/2” Spacer) 1
    - Hardware Kit HCU2S77 Hardware Kit (See Hardware Detail) -
