Back To Listing HCU2D77
Duplex Two 19" Rack Units 7'6" Tall
Talk With an Engineer-

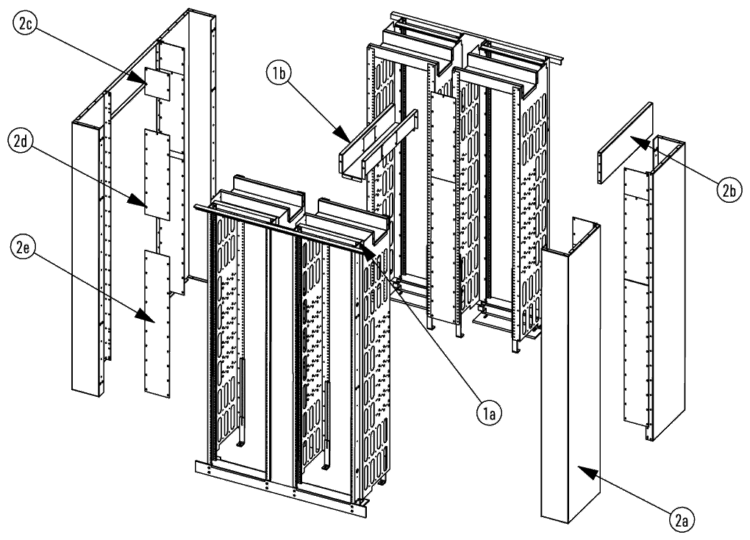

Part List
1 HCU2D77 2-Rack Unit Duplex - 1a HCU2S77 19” x 7’-6“ Rack Assembly 2 Rack Units (7-1/2” Spacers) 2 1b HCU9550 Duplex Wire Channel with Covers 1 - HCU2D77_Hardware Hardware Kit for HCU2D77 (See Hardware Detail) 1 2 HCUDECA7 Duplex End Cover Assembly - 2a HCUDW90 90" Aluminum End Cover 4 2b HCU9590G Duplex Endcover Bridge 2 2c HCUWC90T Wireway Cover Top (7-1/2” Spacer) 4 2d HCUWC90M Wireway Cover Middle (7-1/2” Spacer) 4 2e HCUWC90B Wireway Cover Bottom (7-1/2” Spacer) 4 - HCUDECA7_Hardware Hardware Kit for HCUDECA7 2 -
Diagrams
Assembled View
Assembled View
Endcovers
Endcovers
Top Plan View
Top Plan View
- Downloads
-
