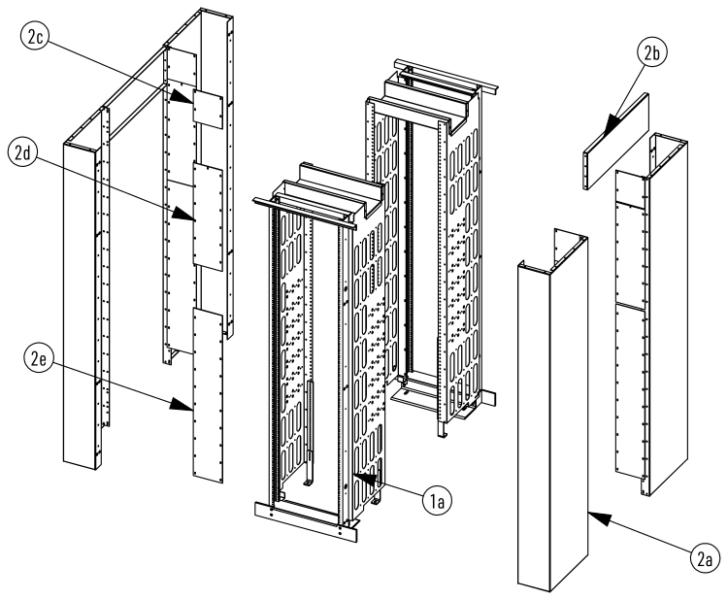

HCU1D77 Exploded View

Back To Listing HCU1D77

Duplex Single 19" Rack Unit 7'6" Tall

Talk With an Engineer
  • Part List
    1 HCU1D77 1-Rack Unit Duplex -
    1a HCU1S77 19” x 7’-6” Rack Assembly Single Rack Unit 2
    - HCU1D77_Hardware Hardware Kit for HCU1D77 (See Hardware Detail) 1
    2 HCUDECA7 Duplex End Cover Assembly -
    2a HCUDW90 90” Aluminum End Cover 4
    2b HCU9590G Duplex Endcover Bridge 2
    2c HCUWC90T Wireway Cover Top (7-1/2” Spacer) 4
    2d HCUWC90M Wireway Cover Middle (7-1/2” Spacer) 4
    2e HCUWC90B Wireway Cover Bottom (7-1/2” Spacer) 4
    - HCUDECA7_Hardware Hardware Kit for HCUDECA7 2
  • Diagrams

    Assembled View

    Assembled View

    Assembled View

    Assembled View

    Assembled View with HCUDECA7 End Covers

    Assembled View with HCUDECA7 End Covers

    Assembled View with HCUDECA7 End Covers

    Assembled View with HCUDECA7 End Covers

    Top Plan View

    Top Plan View

    Top Plan View

    Top Plan View
